SPECIFICATIONS |
|
| Content | 100% Polyester |
| Width | 167 cm (66") |
| Weight | 382 g/m |
| Cleaning | Code "S" Care |
| Finish | Water and Stain Repellent |
| Application |

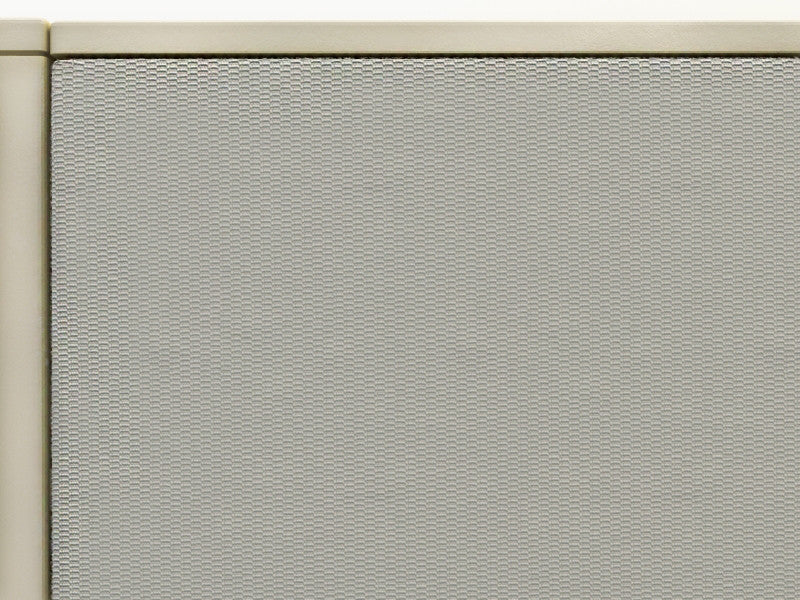

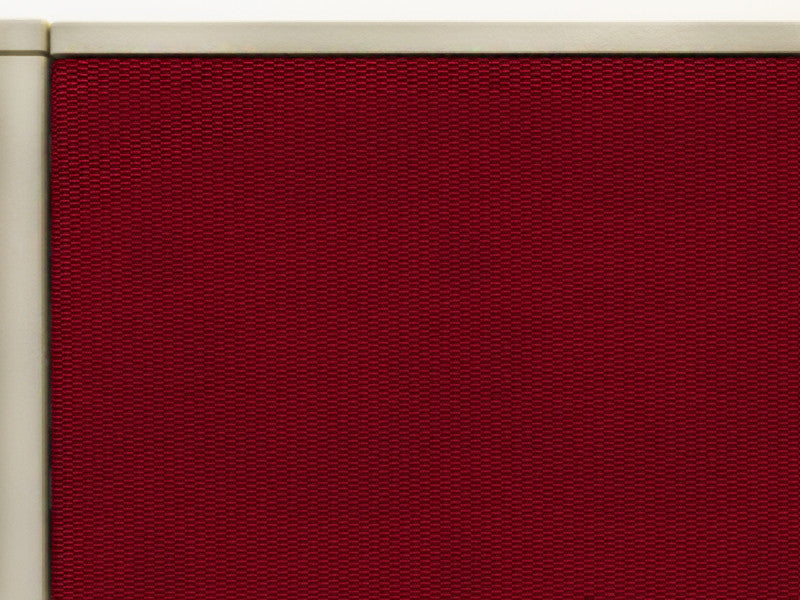

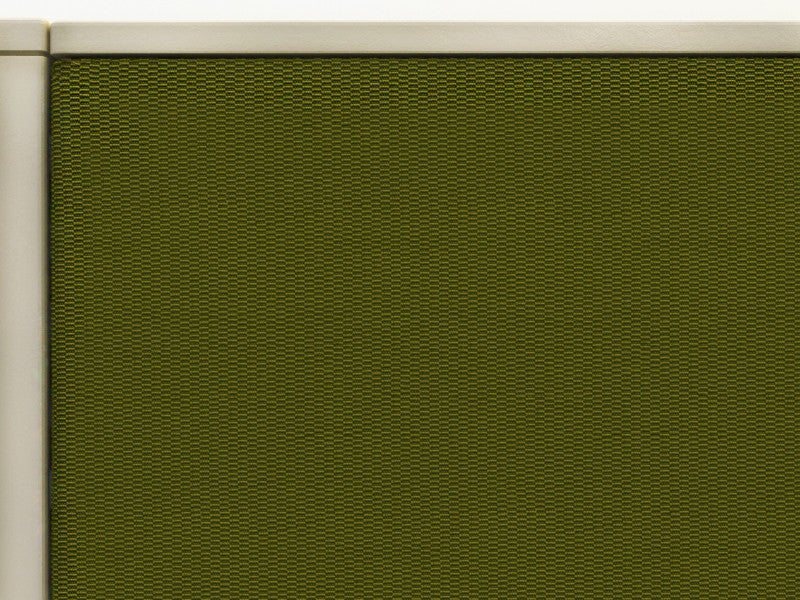

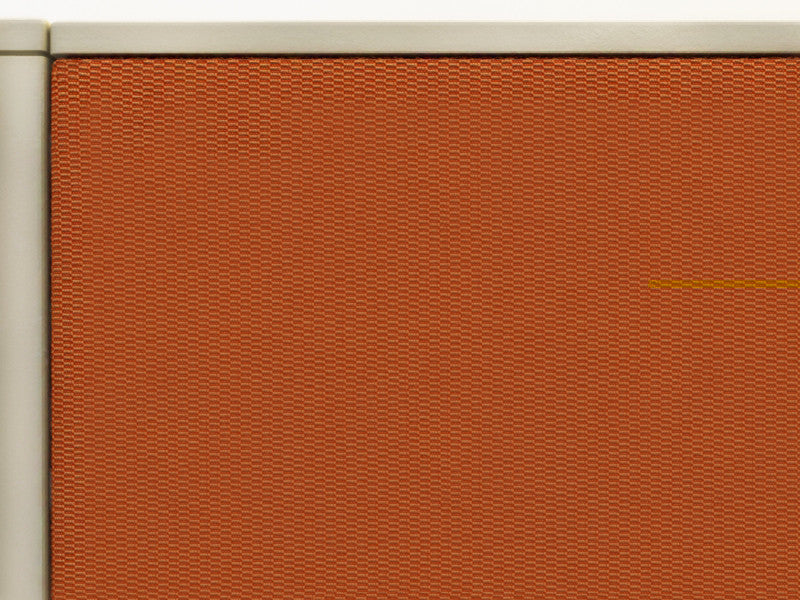

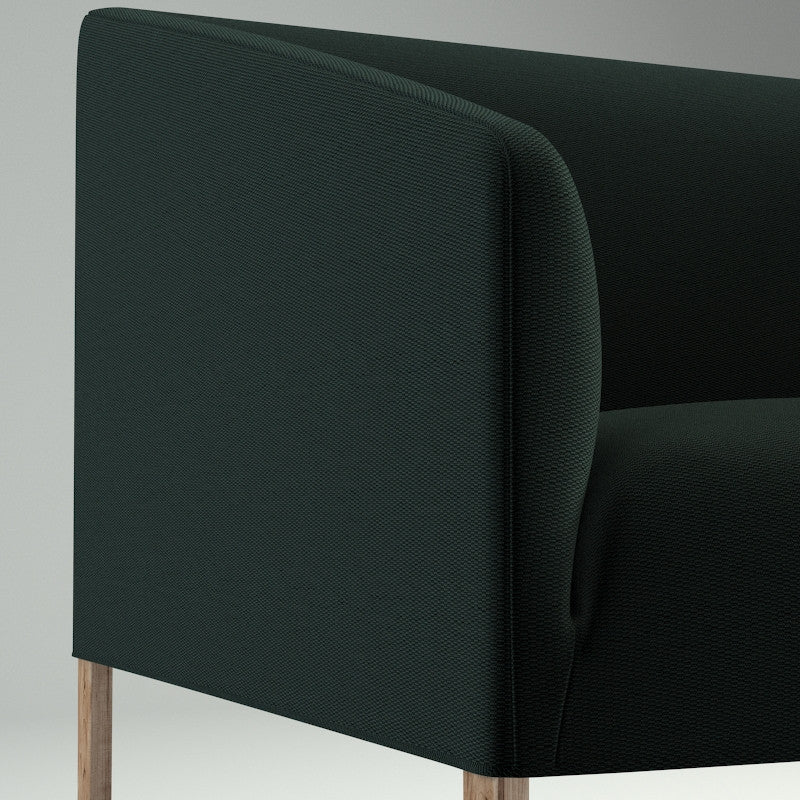

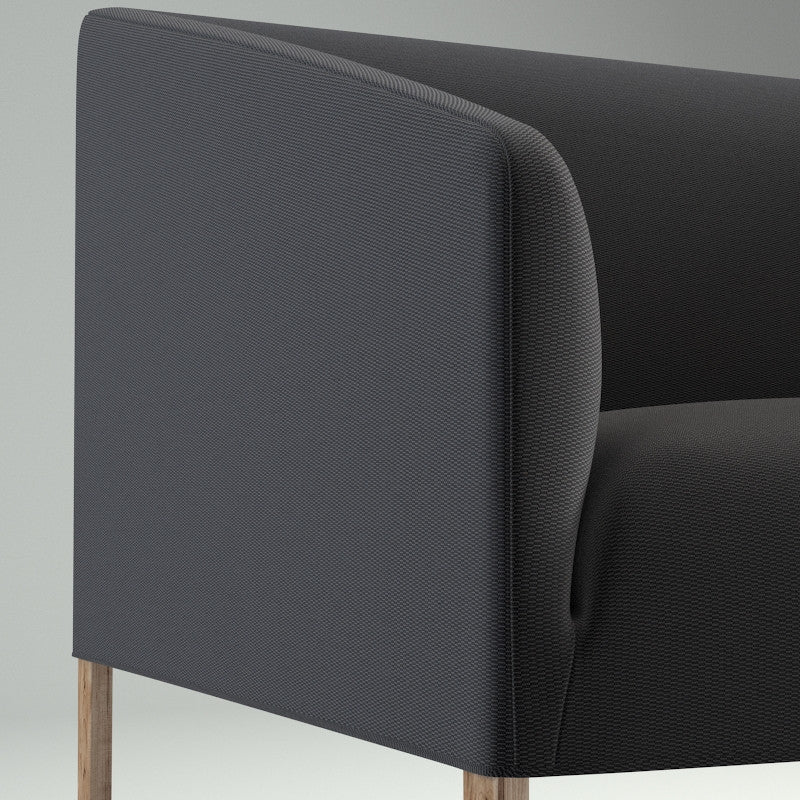

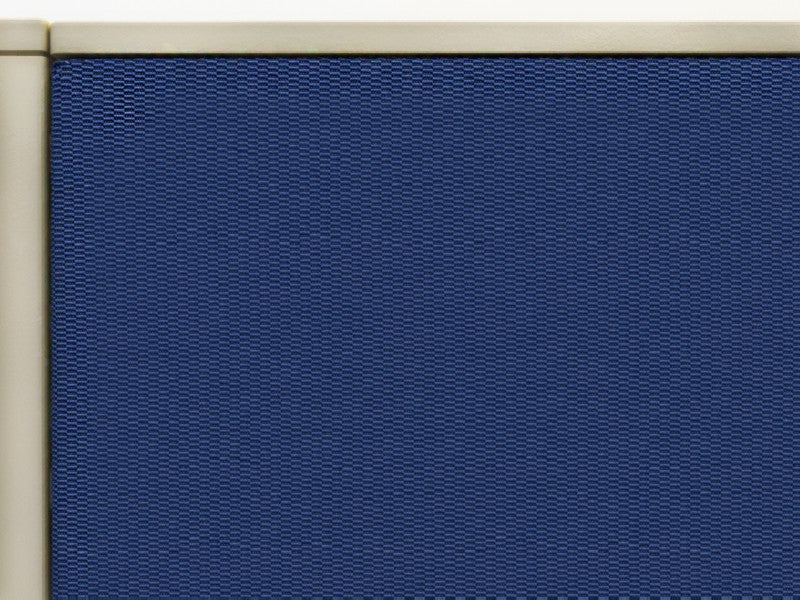

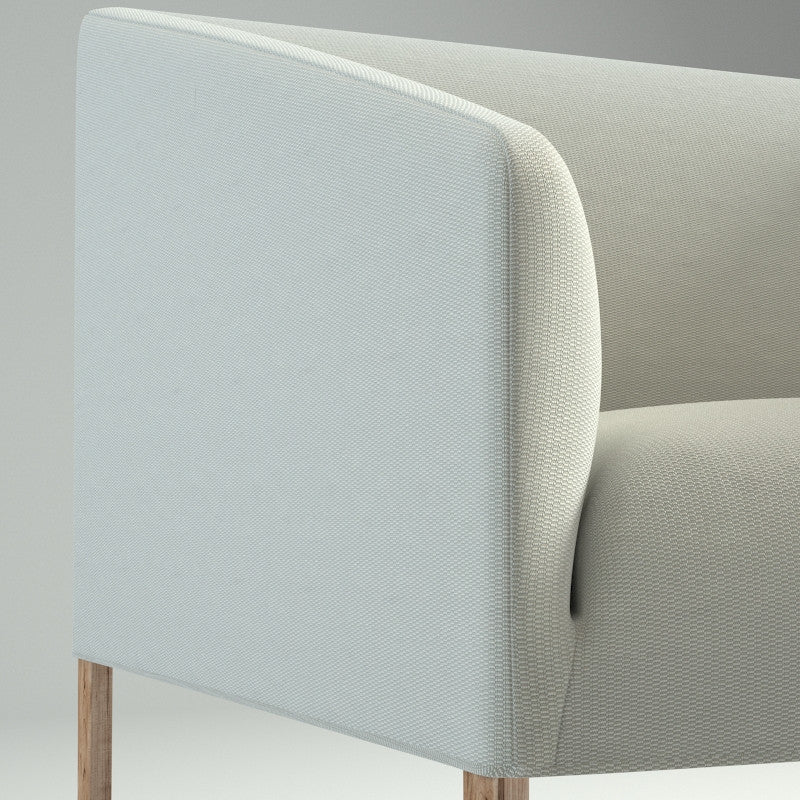

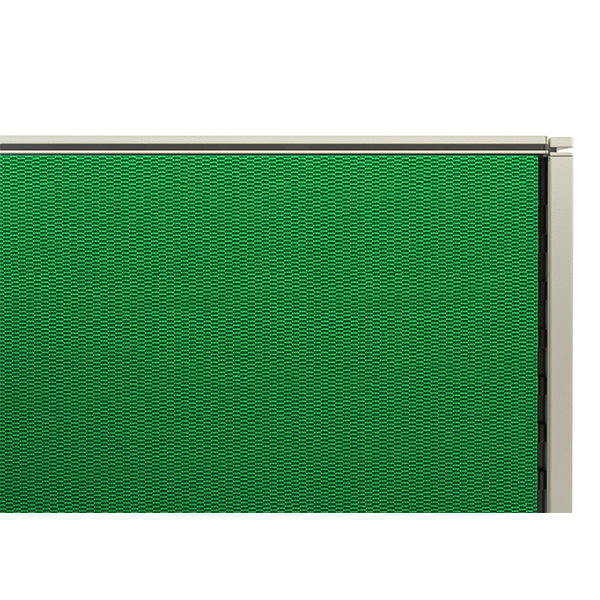

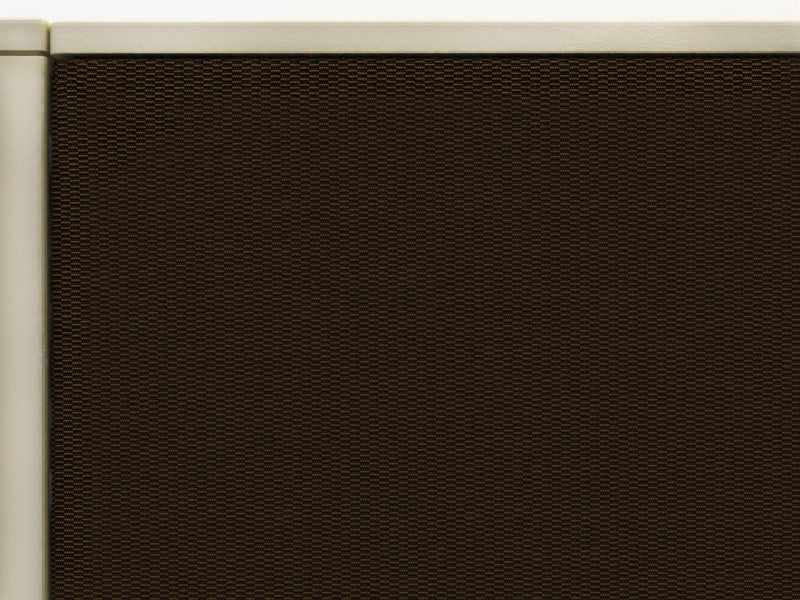

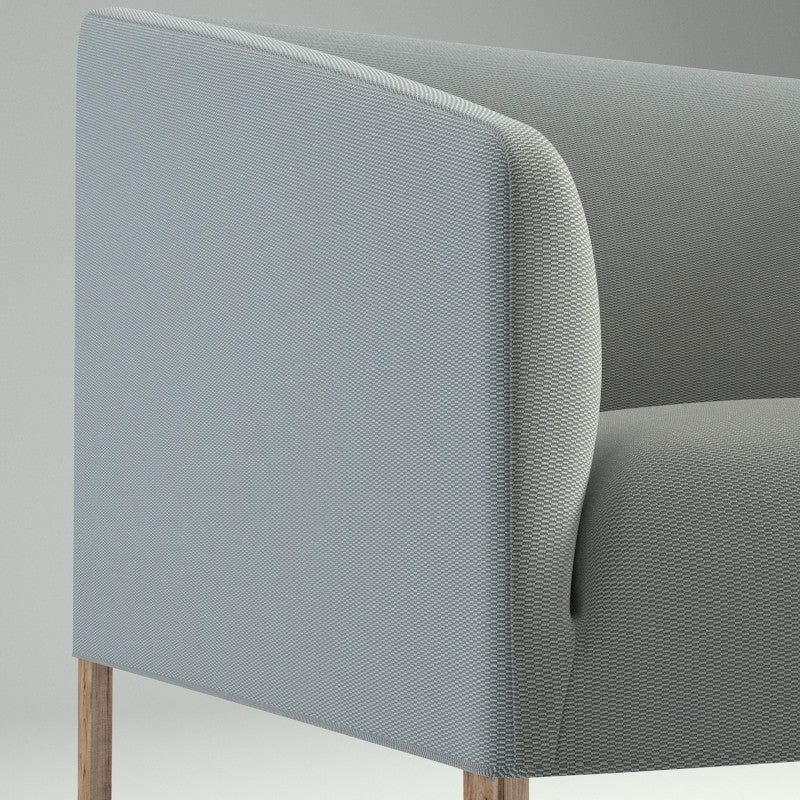

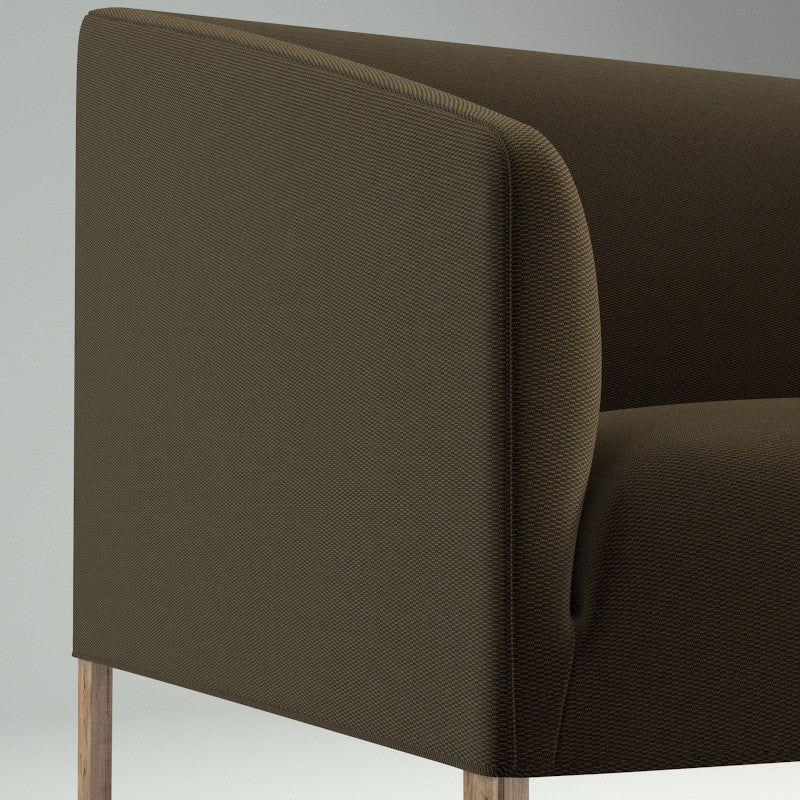

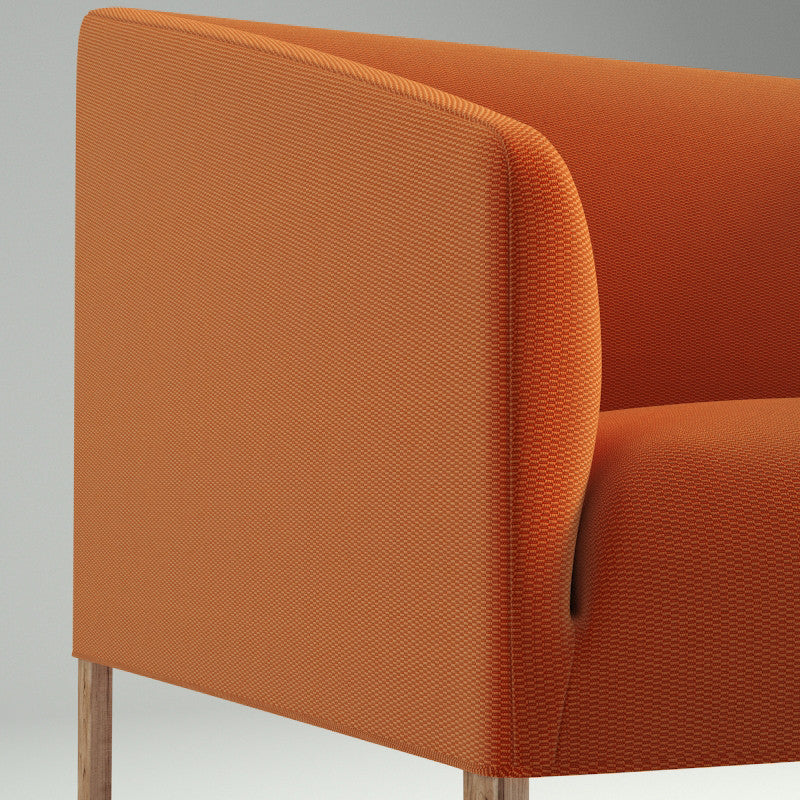

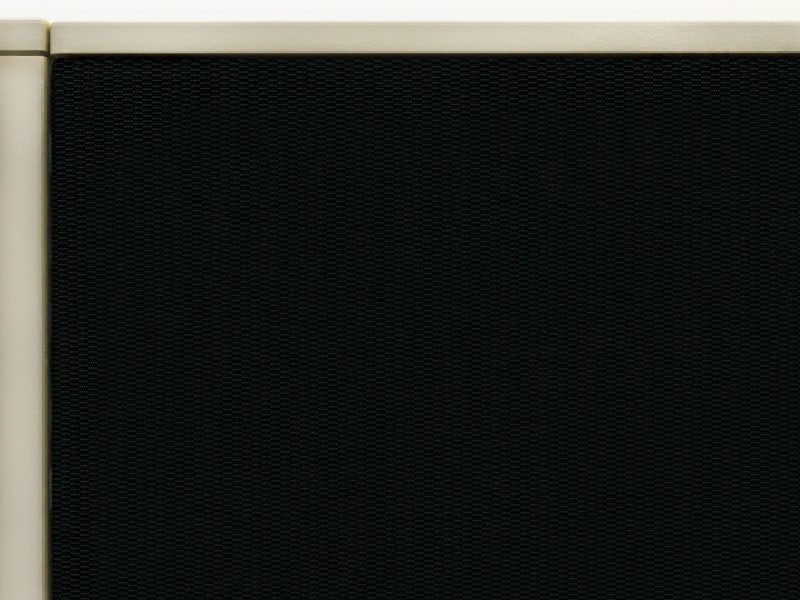

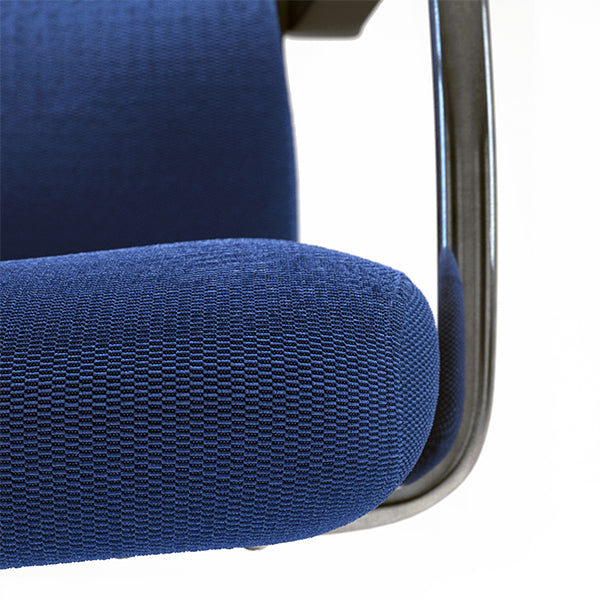

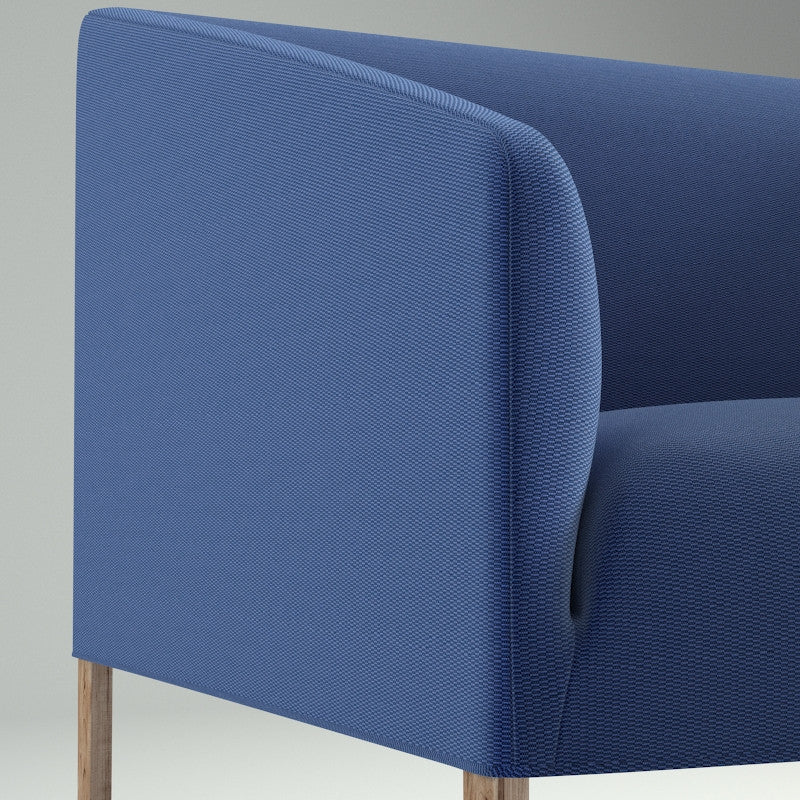

Upholstery, Vertical Surface, Acoustic Panel
|
TESTING |
|
| Abrasion | ASTM D 4157 Option 1 50,000 double rubs |
| Crocking | AATCC 8 Wet: Class 4.5, Dry: Class 4.5 |
| Light Fastness | AATCC 16.3 Class 4.0 @ 40 hours |
| Pilling Resistance | ASTM D 3511 / D 3511M Class: 4.0 |
| Seam Slippage | ASTM D 4034 Warp: 40.3 lbs / 18.3 kgs, Weft: 39.0 lbs / 17.7 kgs |
| Tensile Strength | ASTM D 5034 Warp: 293.1 lbs / 133.0 kgs, Fill: 160.1 lbs / 72.6 kgs |
| Flammability (Vertical) | ASTM E84 Class 1 or A |
| Flammability (Seating) | CAL 117:2013 Pass |
| Harmful Substances |  |
ACOUSTICAL PERFORMANCE
This graph shows the acoustic transparency of the fabric. The plot below summarizes impedance chamber measurements of absorption of a semi-anechoic termination and the fabric in front of the semi-anechoic termination.
